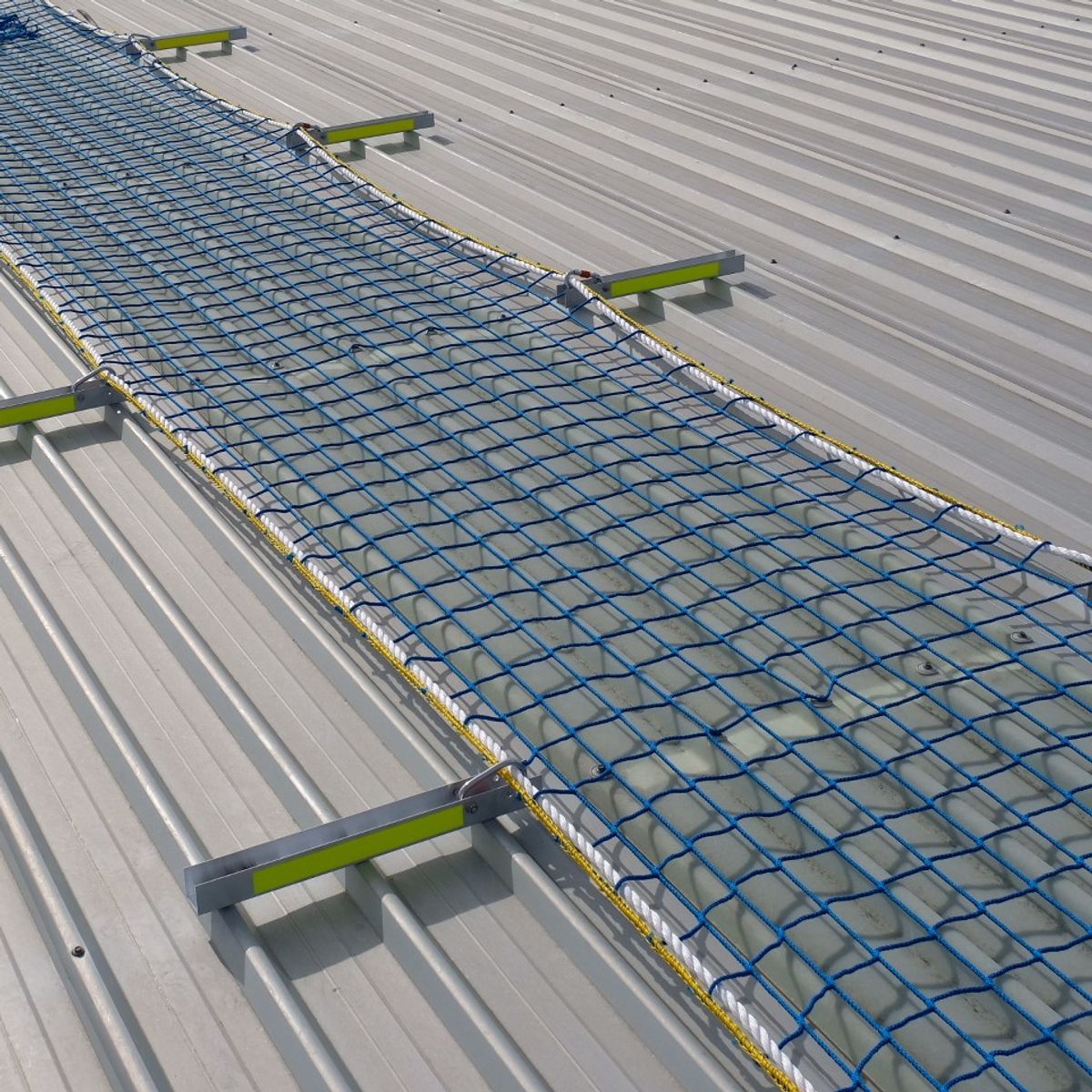

Pro-Vis Skylight Safety Mesh
The SiteTech Pro-Vis Skylight Safety Mesh is the first purpose-built safety product for roof structures such as skylights. Each component and the whole system of anchoring have been thoroughly tested by independent engineers to ensure the highest safety and the first certified product in the market. Select from our standard stock range, or speak with us about made-to-order solutions.
Get Your Free Quote
Our experts will help you find the perfect fall protection system for your project
Pro-Vis
The SiteTech Pro-Vis Skylight Safety Mesh is the choice for efficient, easy-to-use and effective fall protection on commercial roofs. Lightweight and easy to install, Pro-Vis Skylight Safety Mesh provides a secure and engineering-validated anchoring system that replaces conventional and cumbersome timber-layered options. With 3 screw points per bracket, Pro-Vis is the safer alternative to all other mesh offerings in the market for skylight panel protection. Each Pro-Vis comes complete with net, carabiner and lock system. Pro-Vis comes in standard lengths of 10metres x 1.3metres wide. Other sizes can be made to order.
Specifications
- 10m (long) x 1.3m (wide) Length 10 m Width 1.3 m
- Opening mesh 100mm X 100mm
- Class A2 Net
- Certificate of Conformance
- 18 x Sunlock Safety Net Brackets
- 18 x Carabiners
- Travel bag
- Instruction Manual
Standards
- Netting certified to EN 126-1-2014
- Mesh System certified to ASNZS:4389
- Carabiners certified to EN362
- Completed System certified to ASNZS:4389
Installation
- Suitable for penetrative roof surfaces with a minimum roof sheeting thickness of 0.48 mm and 550MPa tensile strength.

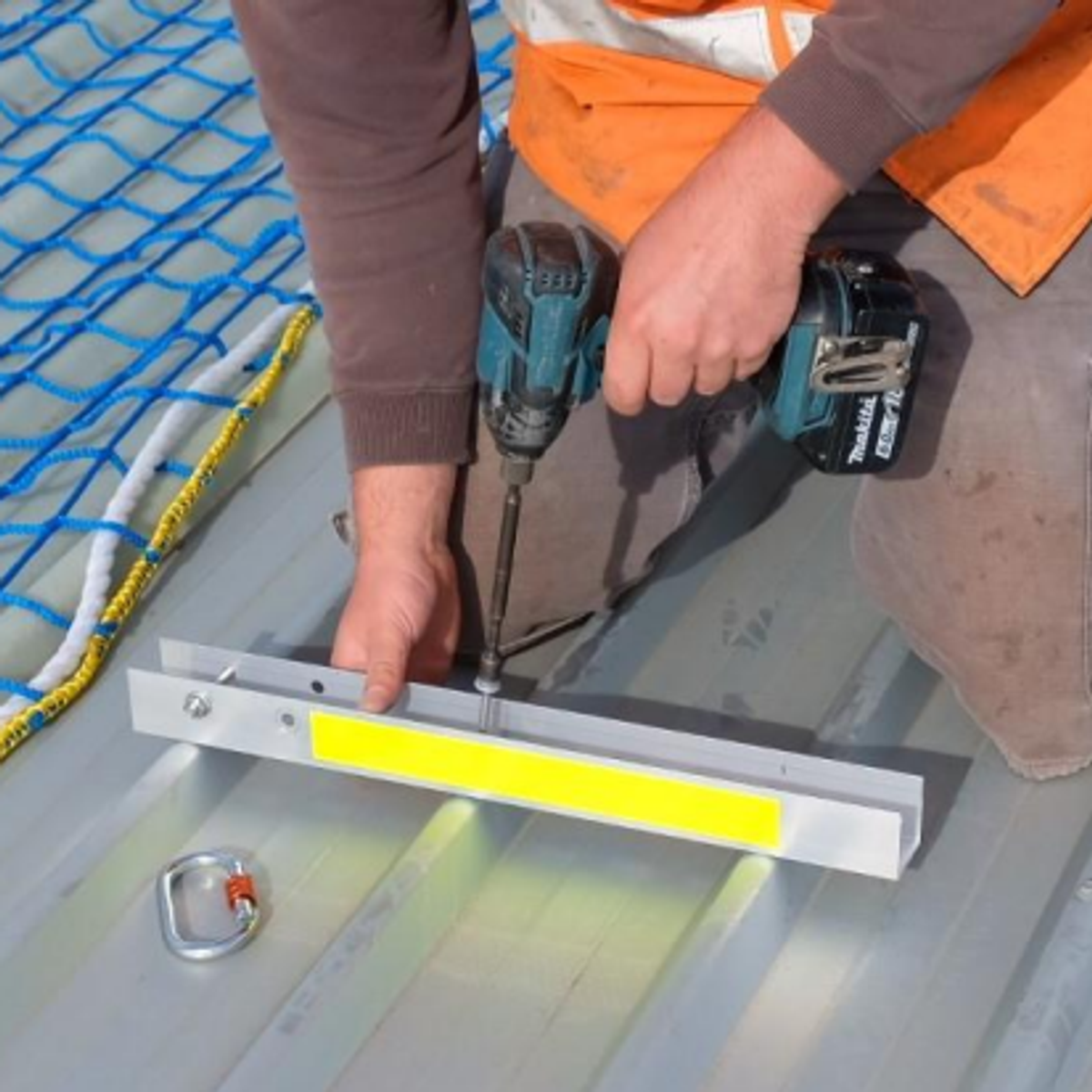

- Three easy screw fixings per installation point.
- Maximum 2m between installation points, 1 fixing point per corner
Features and Benefits
- The Pro-vis system is a combination of components (net, carabiner, lock system).
- Quicker to install versus conventional timber layered options
- Easier to carry to the roof height, only requiring one person.

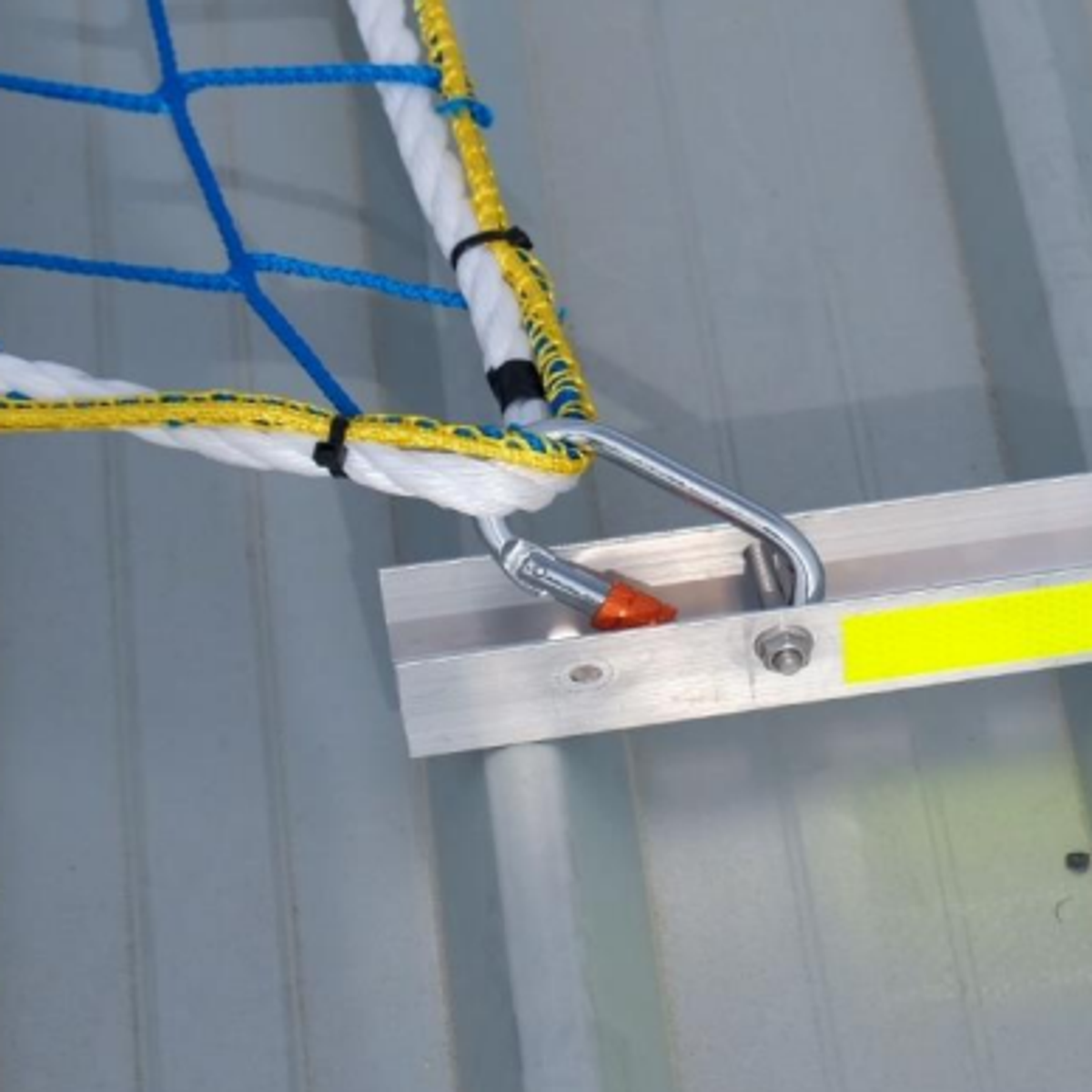

- The carabiner is made of corrosion-resistant steel and conforms to regulatory requirements with a double-action safety mechanism. The carabiners used are over-specified for the use.

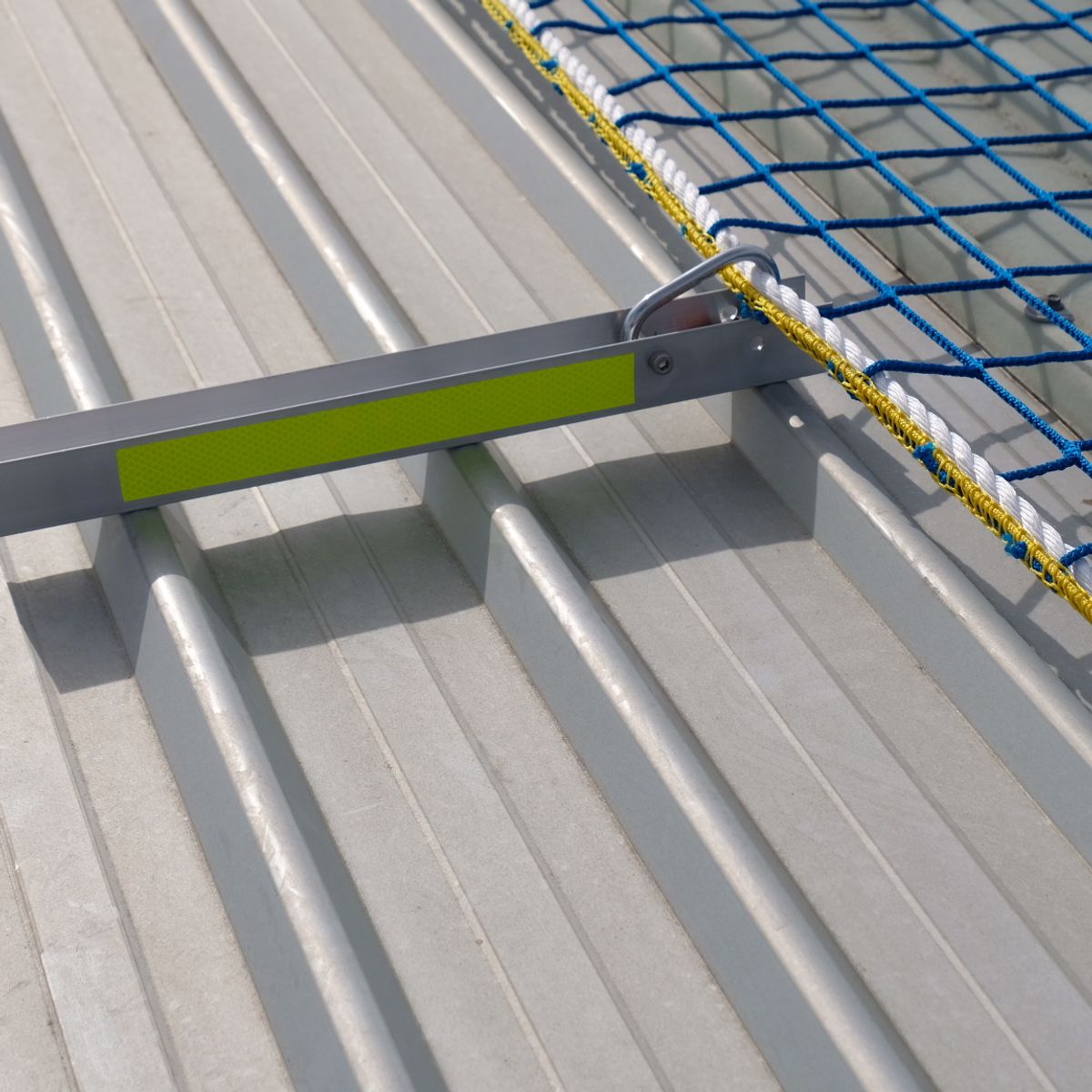

- A SiteTech Safety aluminium roof anchor fastened with three individual screw points and stickered with high visibility marking.
- Custom-designed roof fixing method certified through active consultation with structural engineers and regulatory bodies.
- High-capacity screw gate enclosure carabiners for maximum safety and efficacy on-site.
- High capacity (category 5 rated) 13-gauge screws that are easily replaced post-installation – no patching.
- Reflective tape is applied to the footing to remove trip hazard risks.
- Comes with a complete roof mounting kit and A carry pack for easy storage in between uses.
- UV Treated.
Buy Now. Pay Later
Enquire NowFrequently Asked Questions
Does this skylight safety mesh meet Australian height safety standards?
How does Pro-Vis compare to traditional timber boards and bollards for skylight protection?
Can the Pro-Vis system withstand long-term outdoor exposure on Australian worksites?
Does Pro-Vis come in different sizes?
Testimonials
Pro-Vis Safety Mesh: Quick Installation
The system is working well, and the installers are getting the hang of installing it reasonably quickly. Compared to our previous method, it’s far more easily moved from one job to another, as well as for storage.
Smart Commercial Solar
Our Resources

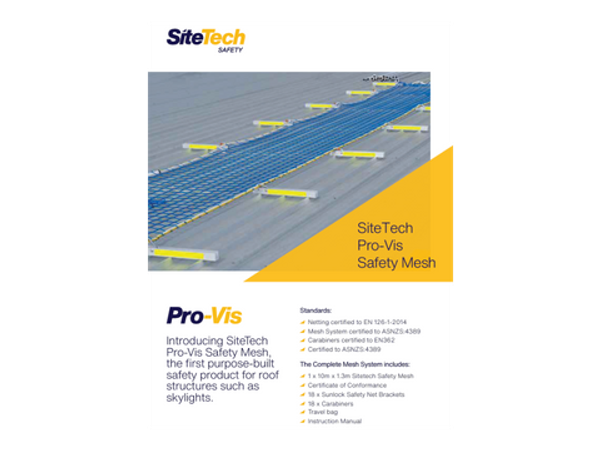

Find all the information you need regarding SiteTech Safety products and services. Browse through our Flyers, Brochures and Capability Statement to learn more.
SiteTech Safety capability statement
Download our official statement to review SiteTech Safety's full credentials. This document details our industry qualifications, compliance standards, and our proven expertise in delivering trusted fall protection solutions.

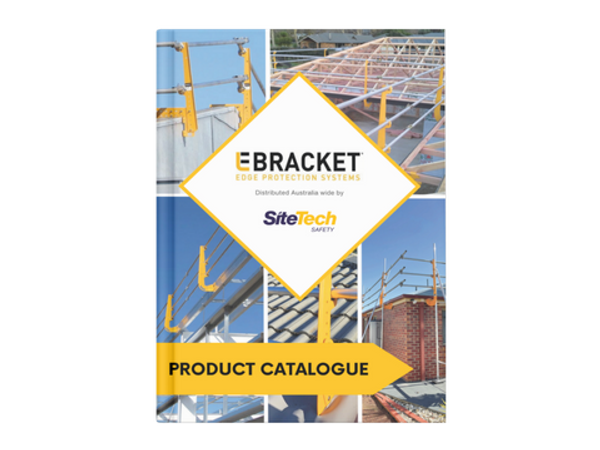

Download NowThe SiteTech Safety Range Catalogue
