Garage & Stud Frame System - EBG
The EBG Garage & Stud Frame Bracket is purpose-built for timber-framed garages, sheds, and stud wall structures. Easy to install and fully compliant, it delivers fast, reliable edge protection without the need for scaffolding.

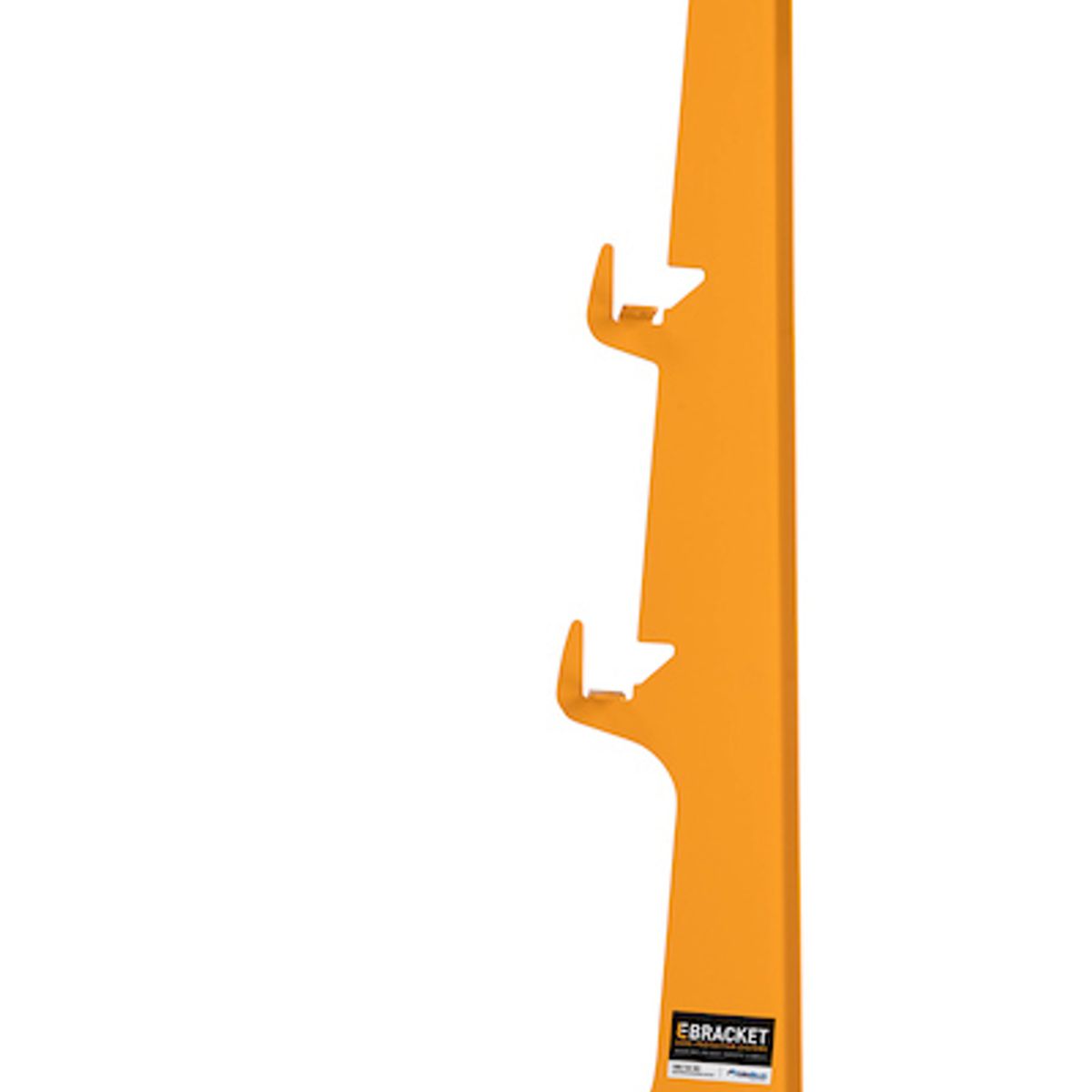

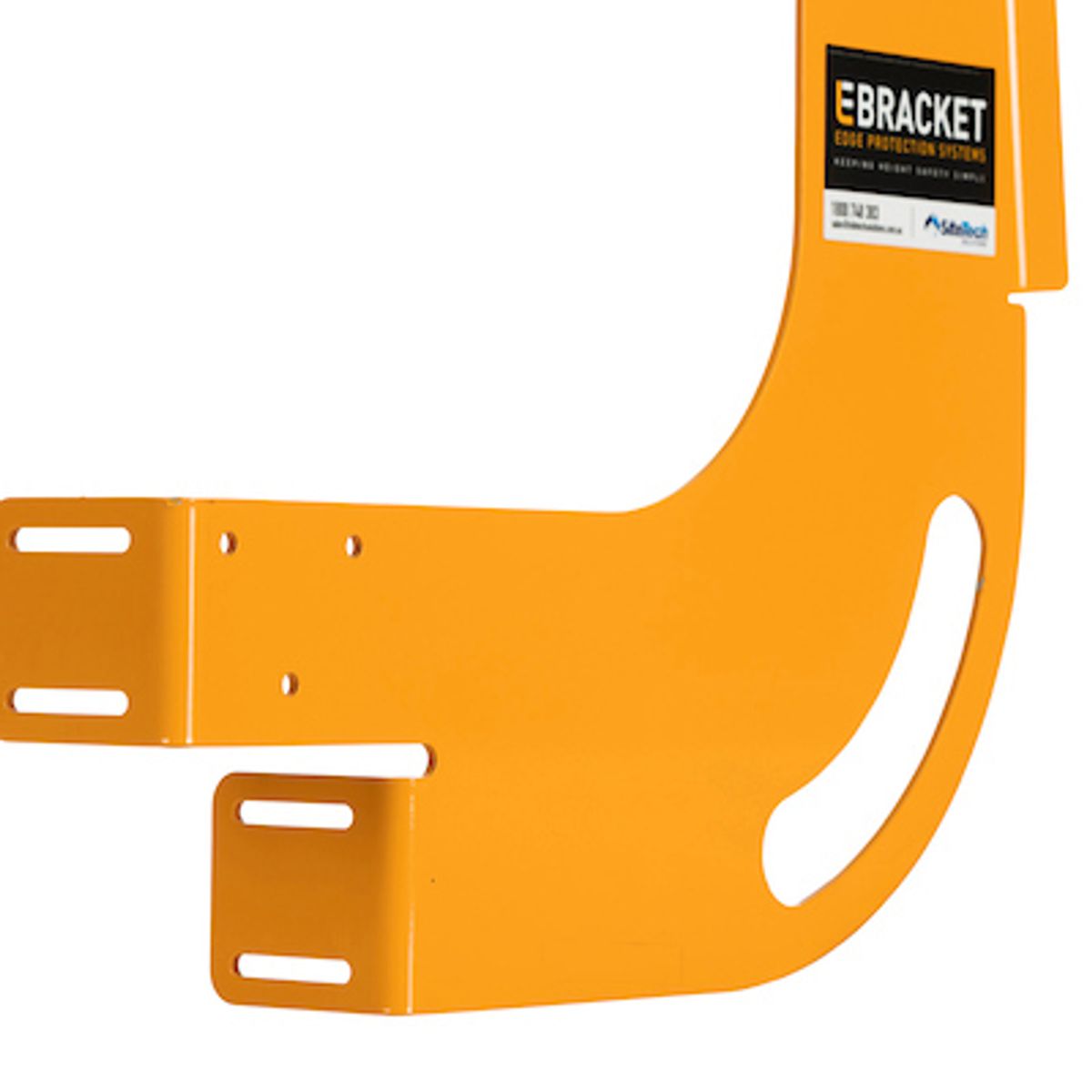

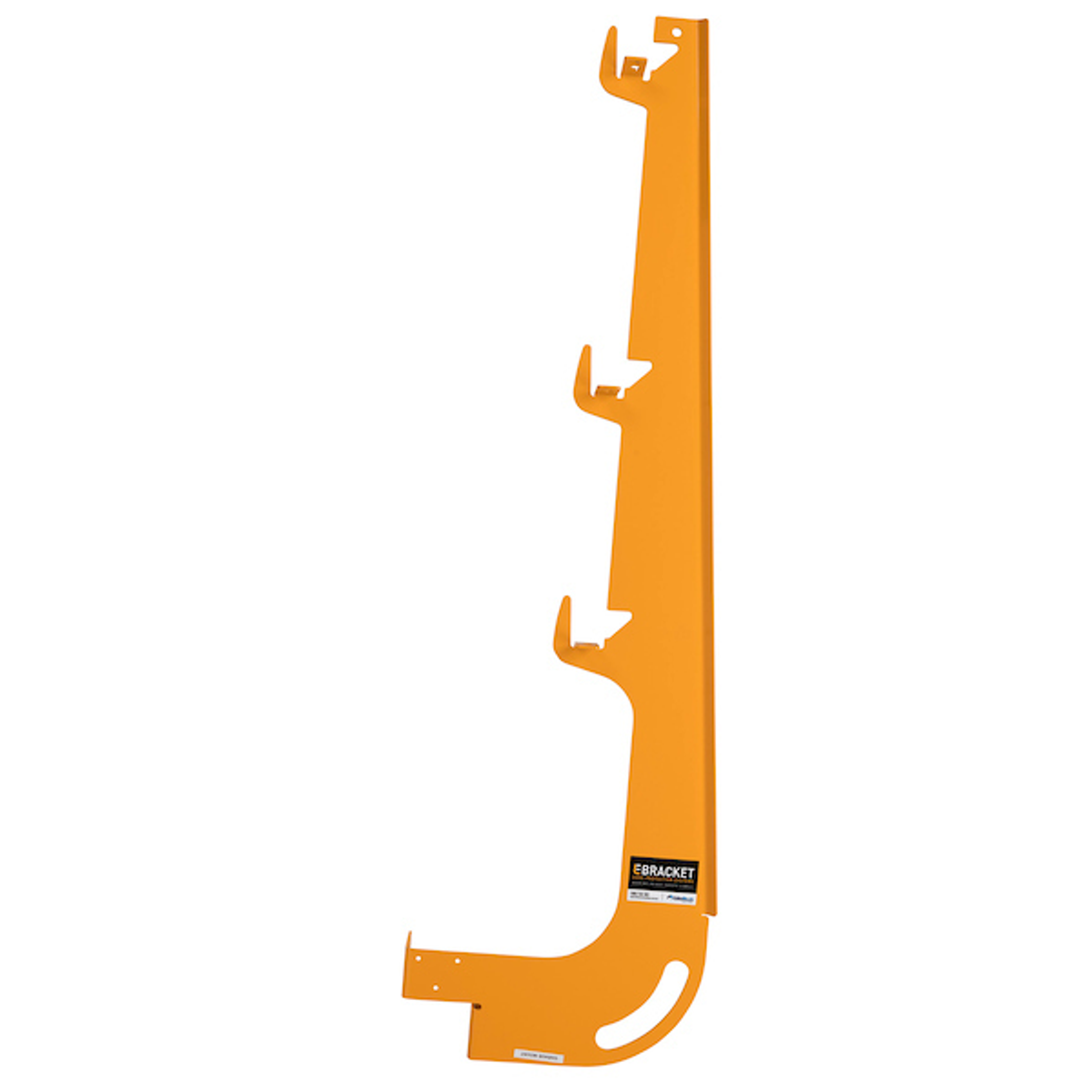

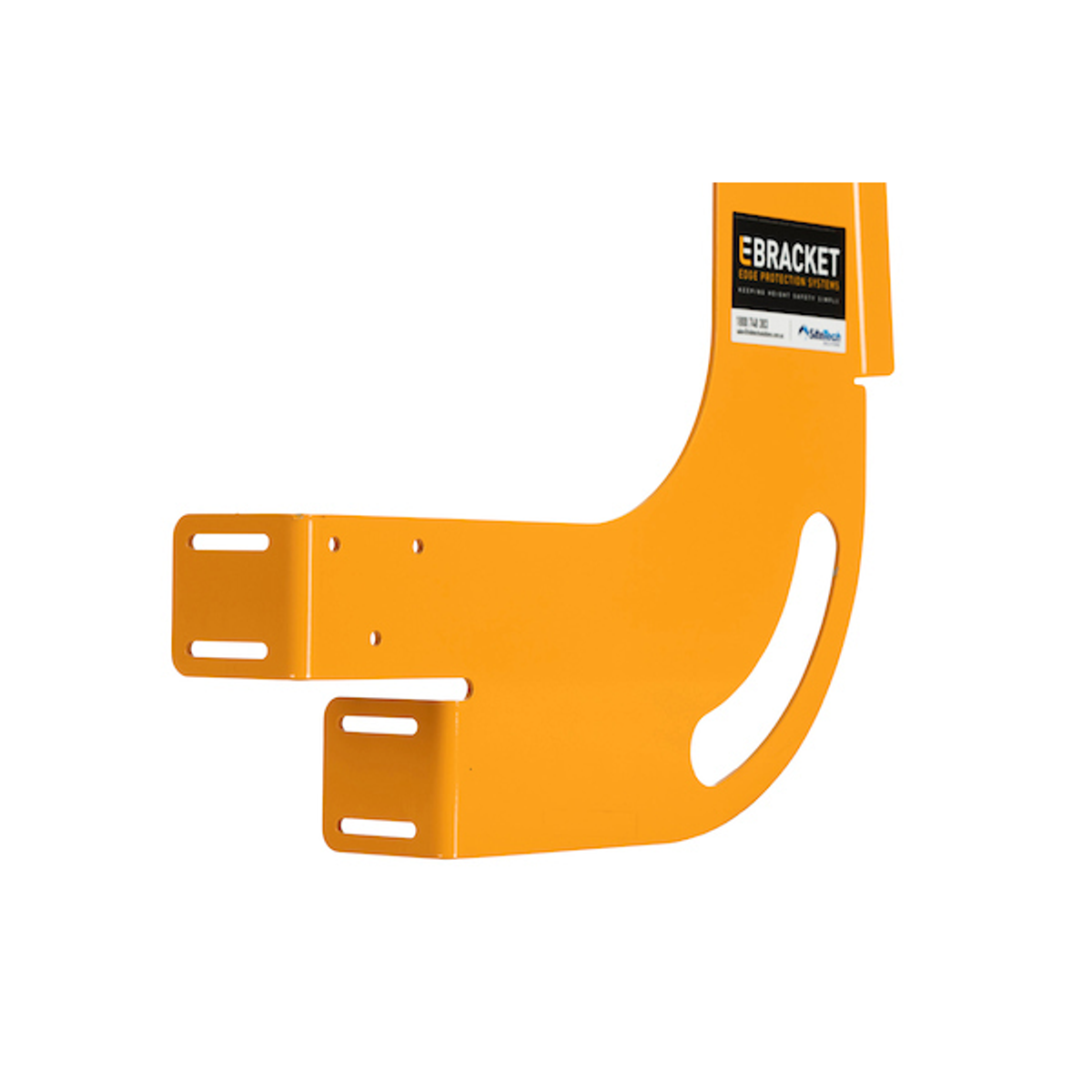

EBRACKET® - Garage & Stud Frame System - EBG

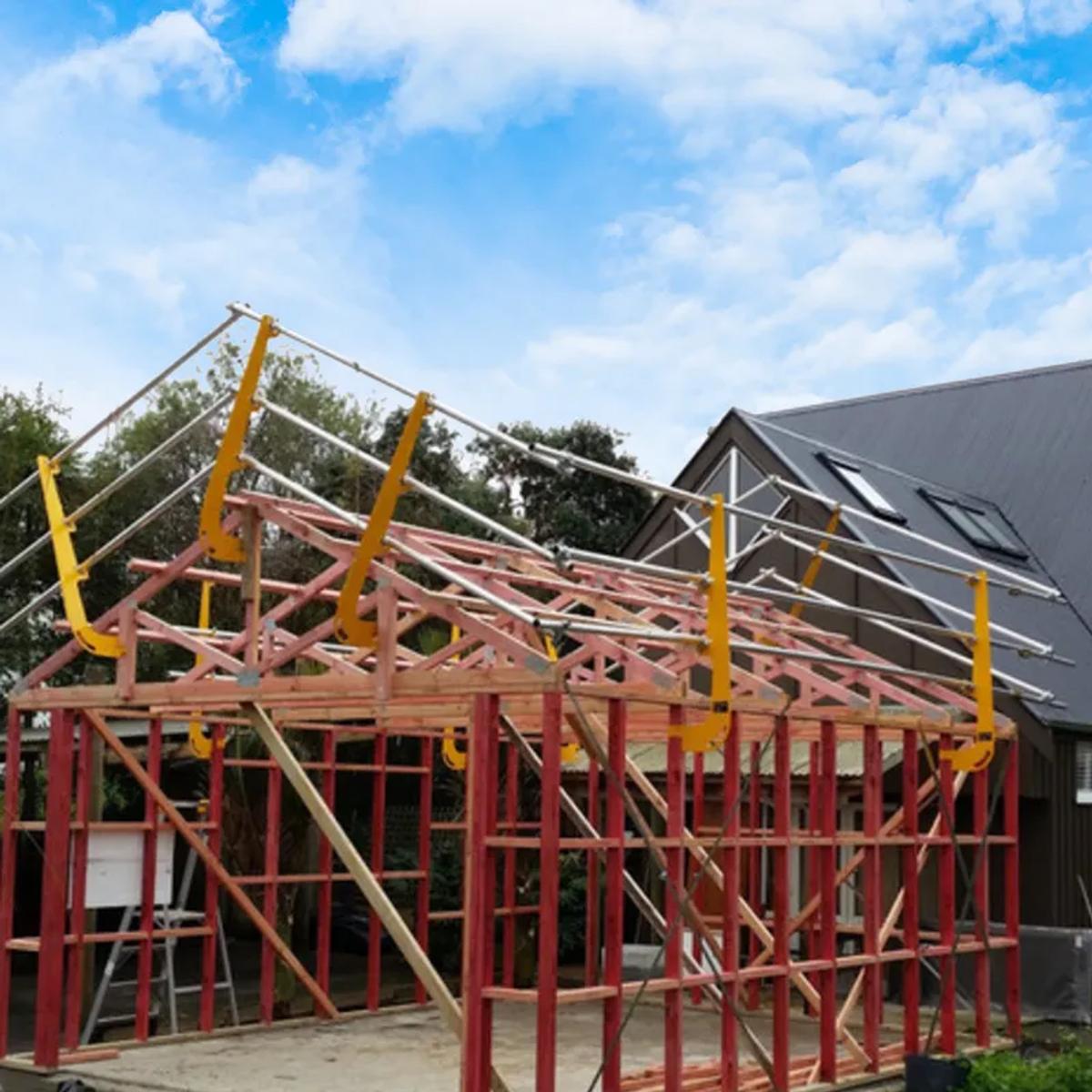

Versatile roof safety for garages, sheds, and stud frame structures. The EBG bracket is designed to fit wall and truss framing on timber-framed garages. It is also ideal for pole-framed sheds requiring only a small block of SG8 90x45 timber screwed to the side of the round pole to attach the bracket to create an effective roof bracket system. Ideal for builders and contractors specialising in garages, sheds, and light-frame structures, the EBG system eliminates the need for traditional scaffolding, saving time, labour, and cost on every job.
Get a Quote
Applications
- Wall and truss framing on timber garages and sheds
- Stud-mounted installation on new builds with little or no roof overhang
- Edge protection for multi-storey floors, decks, verandas, and carports
- Truss face mounting in tight eaves or tri-panel housing situations
- Compatible with New Build Soffit Mount and New Build Truss Mount systems
Installation

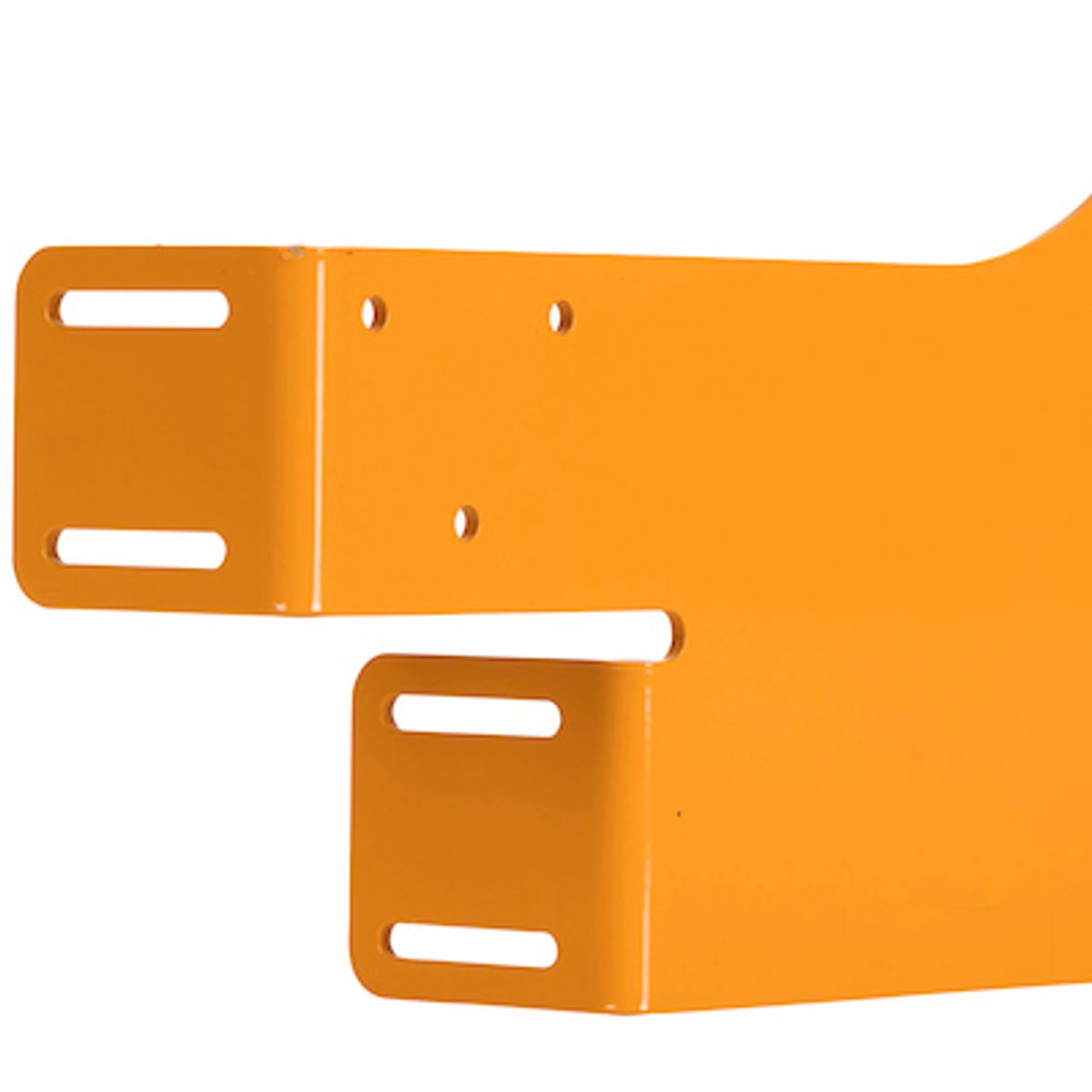

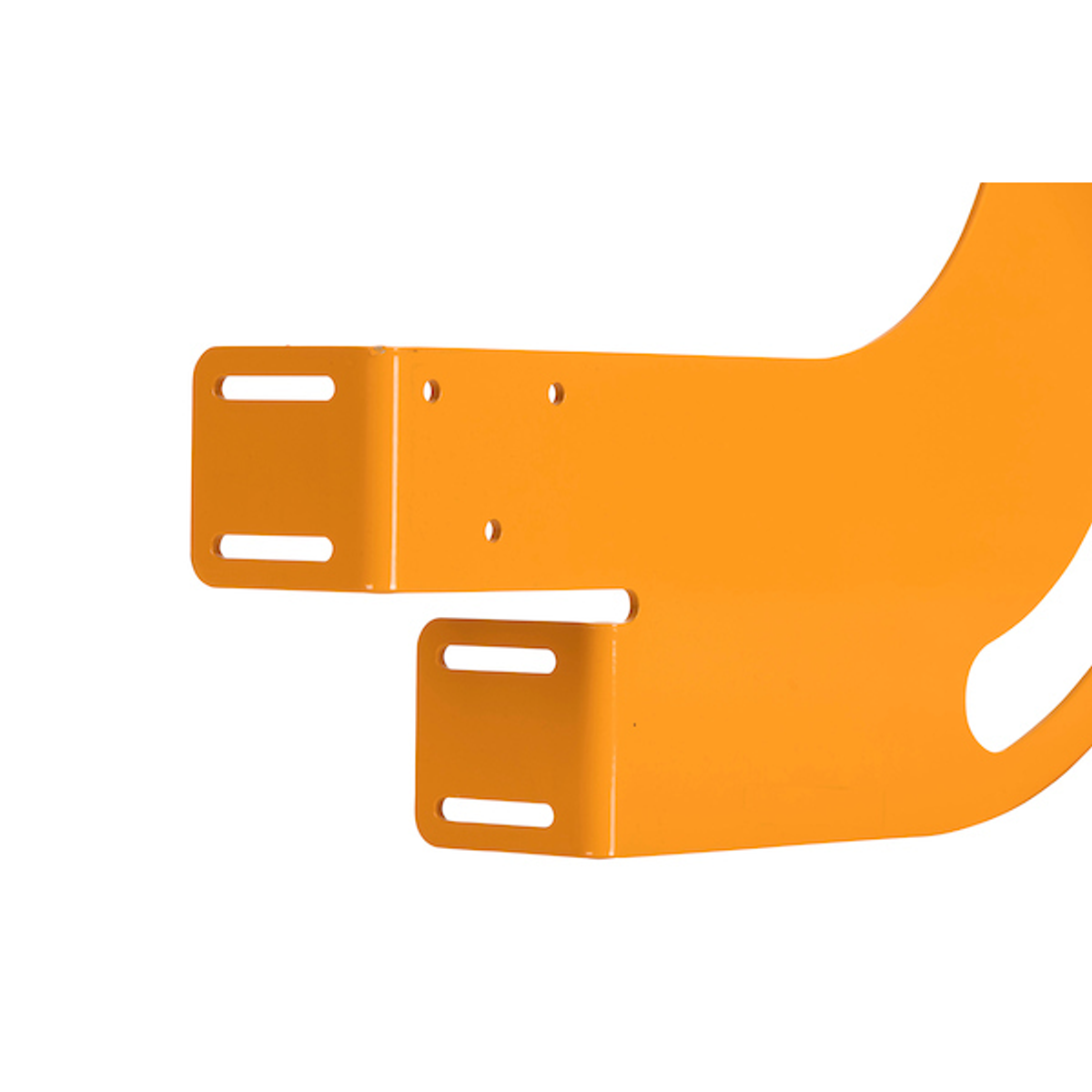

The bracket is secured to a 90x45mm vertical framing member using 3 × 50mm tek screws. If the framing member is smaller or larger, it can be packed to suit, or a 90x45mm block can be temporarily fixed for installation.
Key Features
- Suitable for roof pitches from flat to 35 degrees
- Up to 5.4m bracket spacing with approved aluminium rails
- Fully compliant to AS/NZS 4994.1:2023
- No interference with wall framing and cladding works
- Available in both left and right hand configurations
- Lightweight, stackable design for easy storage and transport
- No more waiting for scaffold companies
- Quick to install and even faster to dismantle
- Works seamlessly with all roof access systems – gates, ladders and stairs.
