Residential Range - EBR
The EBR Ground Up / Re-Roof bracket provides full clearance from the roof surface and being non-fixing (pressure only), it won’t mark or damage building surfaces when in place. With the ability to set up and load rails from the ground, set-up times are reduced, and safety is enhanced.
EBRACKET® - Residential Range - EBR

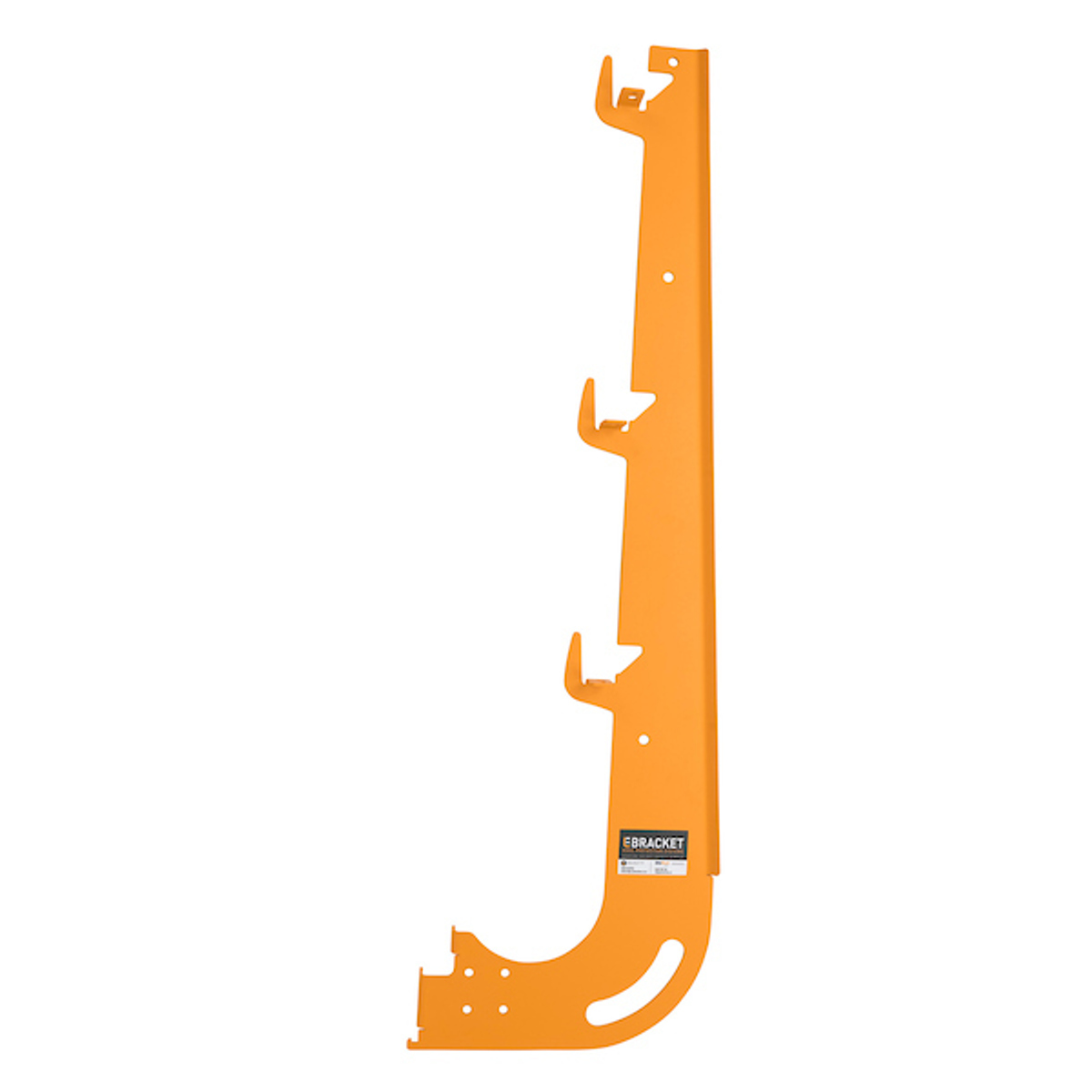

The EBR Ground Up / Re-Roof Bracket is purpose-built for use on existing buildings where disturbing cladding or soffits isn’t an option. It’s also ideal for new homes, extensions, solar installations, roof painting, and re-roofing projects, providing a quick, non-invasive way to establish a compliant temporary roof guardrail system.
Get a Quote
Applications
- Existing structures where soffit or cladding removal is not possible
- New housing and alteration projects
- Re-roofing, solar panel installation, and roof coating or painting
- Suitable for flat, gable, and sloped soffits, exposed rafters, and fascia mounting
Installation
The EBR bracket system is installed from the ground up using an adjustable base jack that applies tension under the soffit via a vertical pole attached to the bracket.
Non-slip neoprene pads hold the bracket securely in place — with no need for fixings — and the design allows the fascia board to “lock in” without damage, ensuring peace of mind and clean removal.
Each system includes a fully adjustable foot mount, suitable for both pitched gable ends and flat soffits. The optional Multi Bracket expands compatibility for sloped soffits, exposed rafters, and fascia-mounted applications where there’s no roof overhang.
Key Features
- Can be erected safely from the ground using the Rail Racer
- Suitable for roof pitches from flat to 35 degrees
- Up to 5.4m bracket spacing with approved aluminium rails
- Fully compliant to AS/NZS 4994.1:2023
- No interference with wall framing – cladding can be completed to just below soffit height while the system remains in place
- Zero damage to existing cladding or soffits
- Lightweight, stackable design for easy storage and transport
- No more waiting for scaffold companies
- Quick to install and even faster to dismantle
- Works seamlessly with all roof access systems – gates, ladders and stairs
Buy Now, Pay Later
Enquire NowComponents
EBR EBracket® with Multibracket and Outrigger

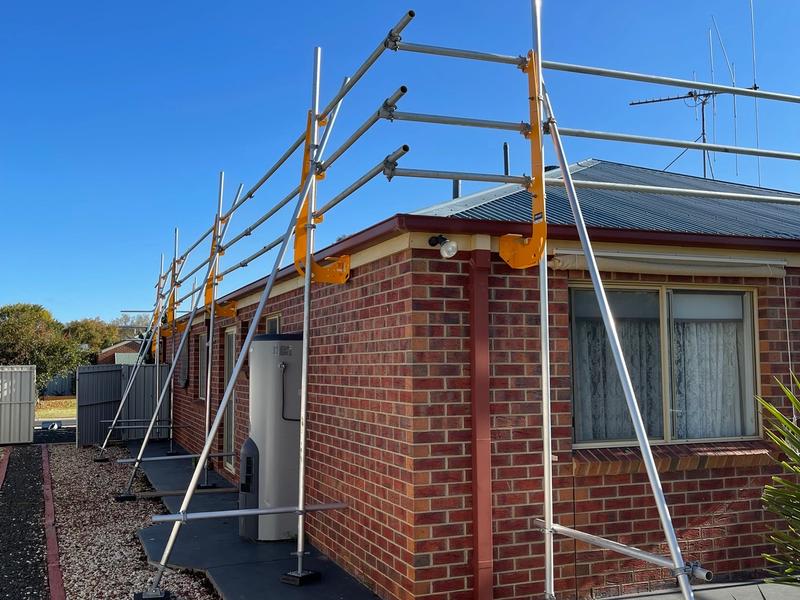

Adaptable edge protection for structures without eaves or soffits.

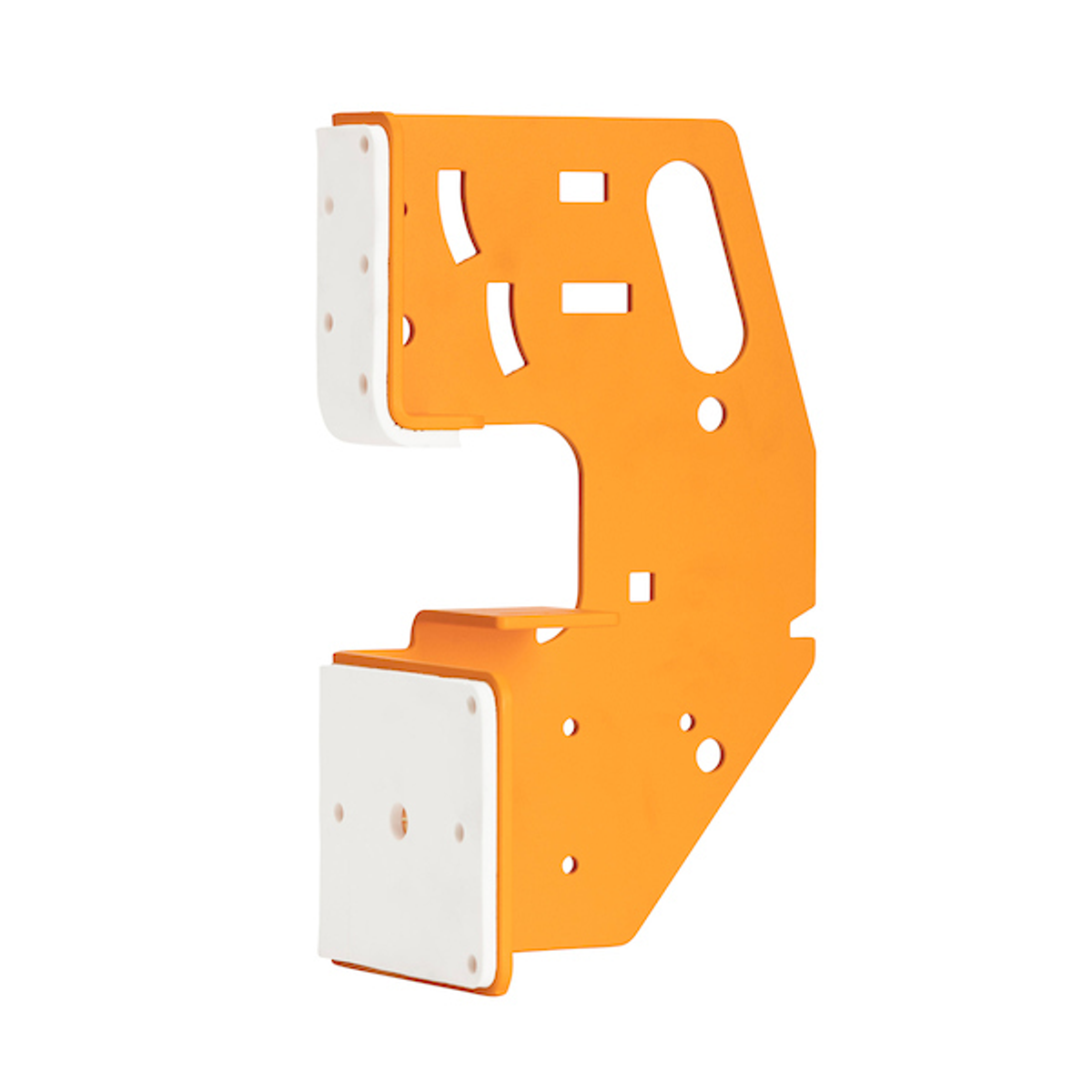

The EBR Multi Bracket is a secondary attachment designed to replace the standard foot mount, allowing the EBR system to be used on buildings without an eave, soffit, or supporting structure above. This innovative accessory extends the versatility of the EBR range, enabling safe, compliant installation in more complex site conditions.

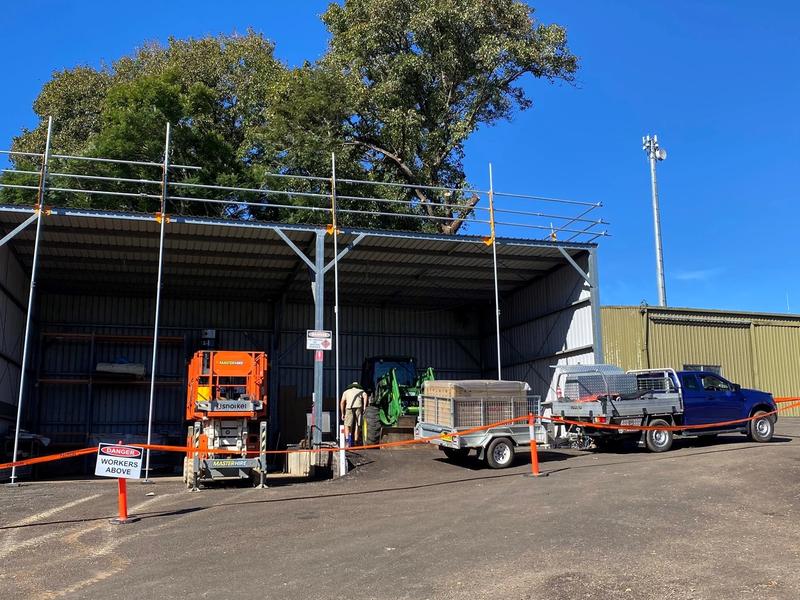

Functionality
The Multi Bracket can be configured in three ways:
- Pressure-Only System: Used with an outrigger setup, it allows the EBR bracket to remain a non-fixed, pressure-only system for applications without eaves.
- Partially Fixed System: Can be partially fixed to the structure, using an upright pole for additional support.
- Fully Fixed System: Can be fully secured to concrete, DHS steel purlins, or structural timber — removing the need for an upright pole entirely.

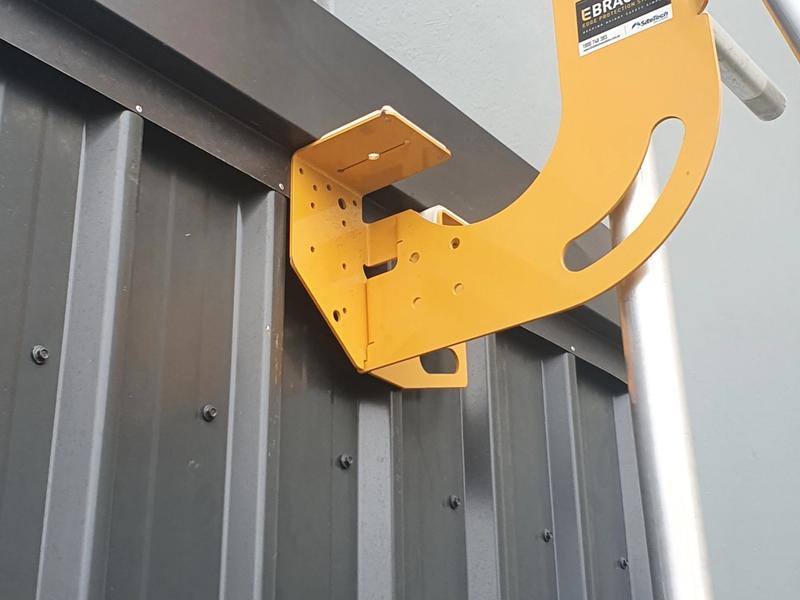

Applications
- Buildings with no eave or soffit
- Structures lacking support above the fascia line
- Projects requiring alternative mounting options, including concrete, DHS steel purlins, or structural-grade timber
- Ideal for both temporary pressure-fit and fixed installation configurations

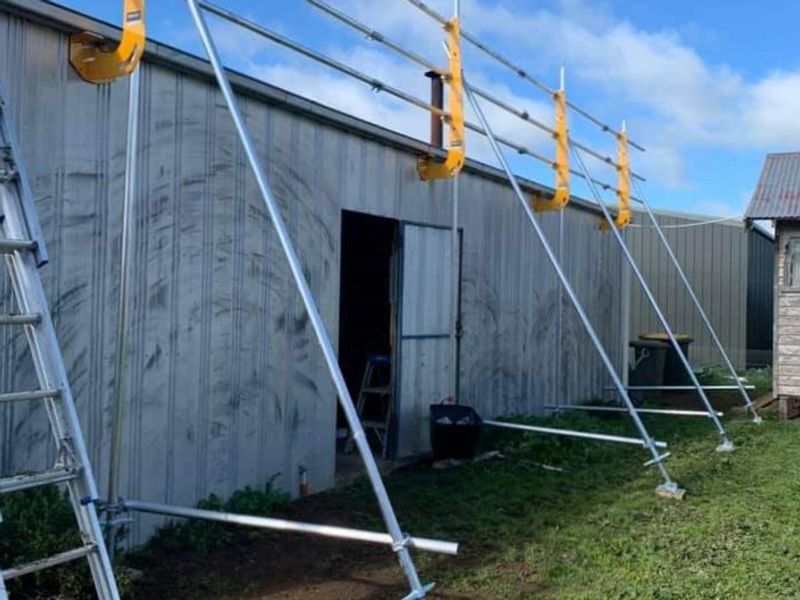

Outrigger (Raker Brace) Applications
An outrigger or triangular brace is recommended when:
- No attachment to the structure is preferred (e.g. existing buildings)
- The integrity of the eave, fascia, or supporting timber is uncertain
- The Re-Roof Bracket is used on a vertical pole exceeding 6 metres in height
EBR Application Flexibility

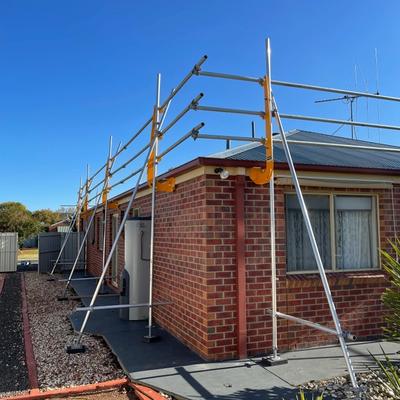

Non fixed/free standing

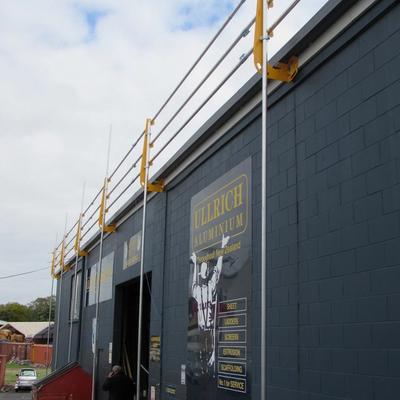

Partially fixed

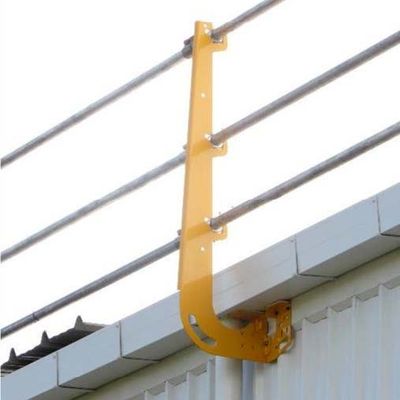

Fully fixed

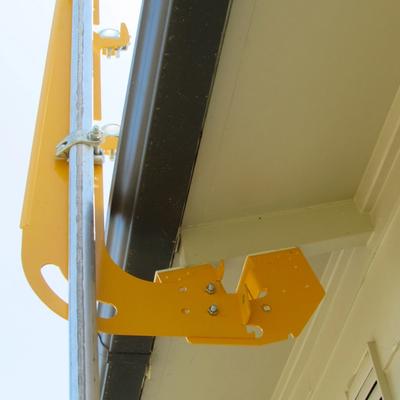

Raked eaves
Safety First - Set up from the ground
What is The Rail Racer?

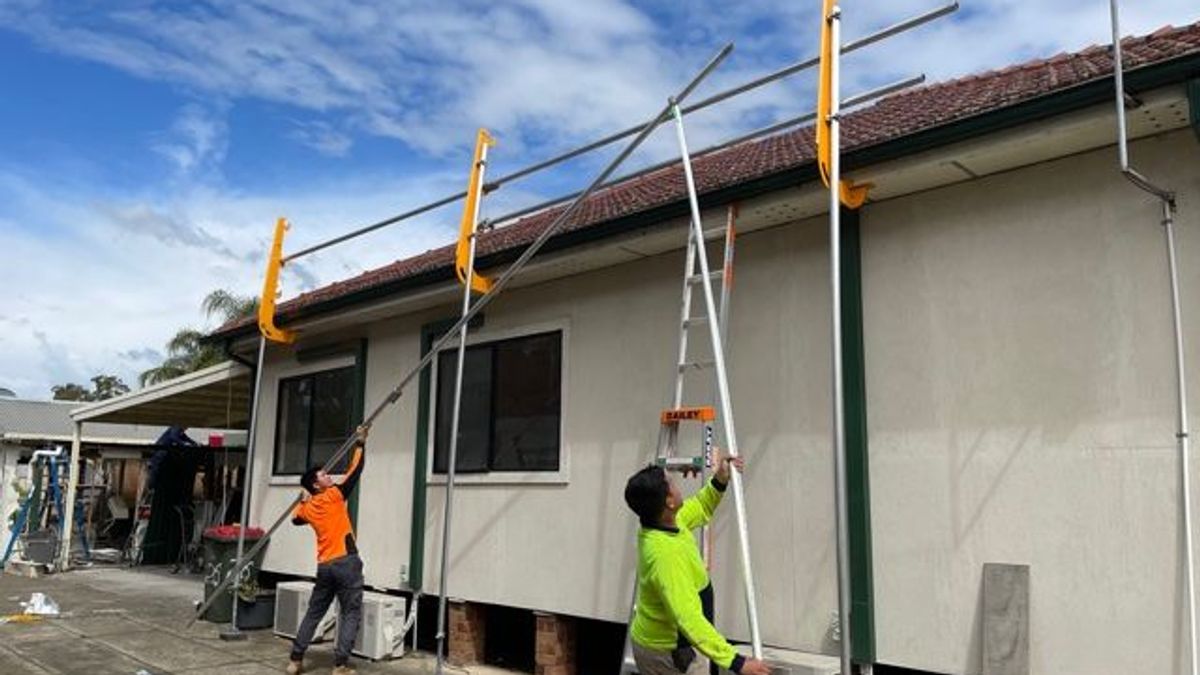

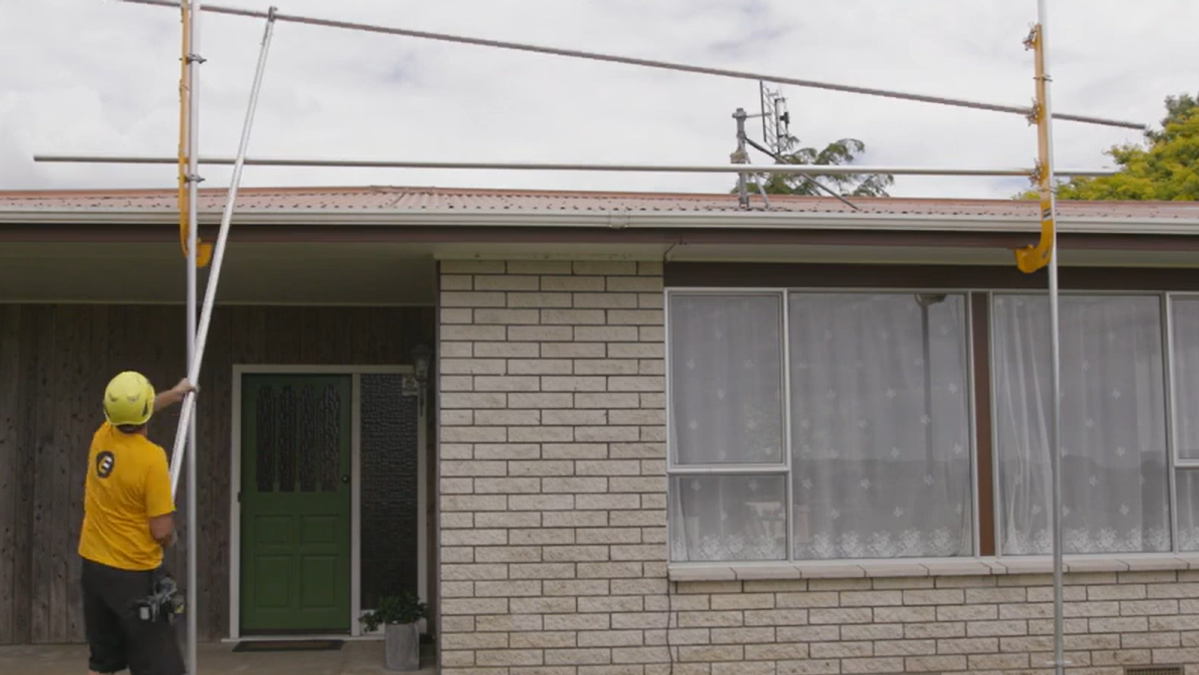

The Rail Racer is a purpose-built tool that enables you to load and remove guardrails safely from the ground, reducing the need to work at height during installation or dismantling. Clamping directly to aluminium tubes, the Rail Racer allows rails to be raised smoothly into the pre-set clamps on the EBracket system, or lowered back down during removal, making the entire process faster, safer, and compliant with height safety standards. Simple, efficient, and built for speed — the Rail Racer helps you get the job done safer and faster than ever.
Explore The Rail Racer
Why buy the EBR?
Convenient
• No need for roof or eave penetration • Can be constructed from the ground up with The Rail Racer. • Compatible with all roof access systems, such as gates and stairs • Fully adjustable foot mount suitable for gable ends
Flexible
• The adjustable Combi Base Jack allows for installation on sloping or unlevel ground & installation on the first storey roof. • Multibracket allows for use on buildings without eaves or structural support for the foot mount application. • Excellent clearance with both timber and metal fascia systems.
Safety
• Nonslip neoprene pads. • Designed & tested for static & dynamic loadings as per AS/ NZS 4994.1 • Load Spreader bracket available; can be used for non-structural, unsupported, or damaged eave linings. • Lightweight aluminium rails for safer handling.
Affordable
• These systems can be set up more efficiently than conventional systems, resulting in faster installation/removal times and the ability for in-house teams to complete their work, therefore, time and money are saved.
Ultimately, our mission is to keep workers safe, ensuring they return home safely to their families every night.
